ASD810 - 3K Lite 8 Channel Hybrid 5-in-1 eSSD Digital Video Recorder, Built-in 1024 GB eSSD, Eco-friendly & Energy-efficient, Up to 2-Week Record, Motion Detection 2.0, H.265

SKU: AU-DT81BH000
€119,99
€159,99
€119,99
Ajouter: NO
Sous-total: €119,99
ASD810 - 3K Lite 8 Channel Hybrid 5-in-1 eSSD Digital Video Recorder, Built-in 1024 GB eSSD, Eco-friendly & Energy-efficient, Up to 2-Week Record, Motion Detection 2.0, H.265

ASD810 - 3K Lite 8 Channel Hybrid 5-in-1 eSSD Digital Video Recorder, Built-in 1024 GB eSSD, Eco-friendly & Energy-efficient, Up to 2-Week Record, Motion Detection 2.0, H.265

€159,99 €119,99

ASD810 - 3K Lite 8 Channel Hybrid 5-in-1 eSSD Digital Video Recorder, Built-in 1024 GB eSSD, Eco-friendly & Energy-efficient, Up to 2-Week Record, Motion Detection 2.0, H.265

€159,99 €119,99
Ajouter: NO

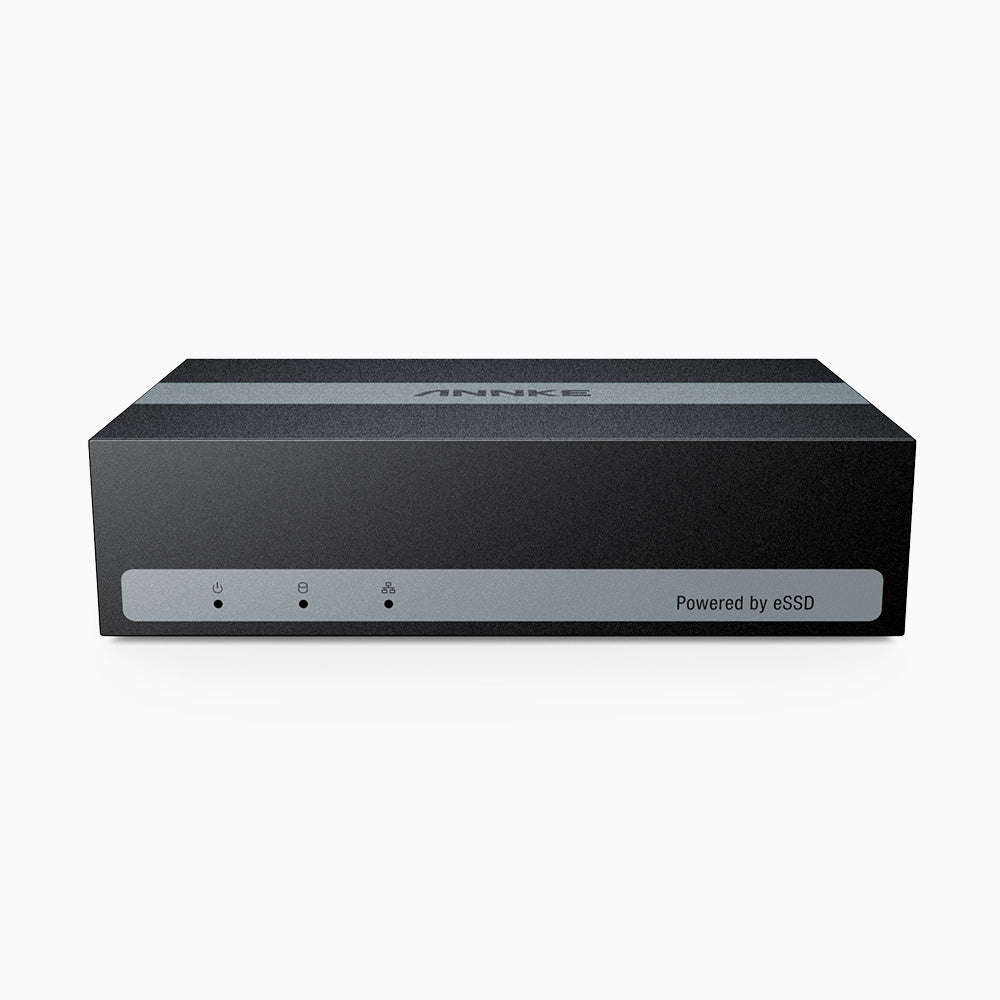

ANNKE ASD810

New-Gen eSSD DVR
for More Energy-efficient Surveillance

Powered by eSSD Technology

Sustainable eSSD tech embraces future trend that the first-seen embedded SSD in a DVR means no HDD installation is needed. The new eSSD tech promises excellent performance with a low failure rate, low heat dissipation, and shock resistance.

Smart Scene-Adaptive Bitrate Control

This eDVR utilizes intelligent algorithms to analyze whether human/vehicles are in the frame. When things matter, it will automatically use a higher bitrate for clear details, which also helps make the most of the storage.

Scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.

5MP Lite Clarity

5MP Full HD footages play an important role on protecting your home & business. Should any incident or intrusion happen, crystal 5MP Full HD images can act as important evidences for case investigation.

All-in-One Compatibility

This DVR supports 5MP @12.5fps cams,1080P AHD, CVI, CVBS analog camera, and 2 5MP IPCs. Coaxial audio access is also compatible to be synchronized with the same cable as the camera.

Up to 2-Week Long Operation

This DVR with an eSSD can record up to 14 days long with eight 1080P cameras connected. It's ease to setup your security web without installing any HDD like ever before.

Intelligent Human & Vehicle Motion Detection

Powered by Motion Detection 2.0, key objects like human beings and vehicles can be recognized and extracted quickly. False alarms triggered by other meaningless moving objects are minimized as well.

Advanced H.265 Video Format

H.265 coding offers longer recording time before having to overwrite the older recordings, saving more storage space than H.264 systems. Just enjoy the 24/7 recording and protection with it.

Download ASD810 Specification

What's in the Box
1X DVR1X USB Mouse1X Power Adapter1X HDMI Cable1X Network Cable1X User's Manual For DVR
Camera
Video CompressionH.265/Scene-Adaptive Bitrate Control coding Video Input8CH Analog HD/Analog + 2CH IP (each up to 5 Mbps)
Video OutputHDMI/VGA up to 1080p/60 Hz Audio Input/Output0/8-ch via coaxial cable
Supported Camera Types5 MP@12 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, IP Camera Input2-CH
IPC Recording ResolutionUp to 5MP IPC Playback ResolutionUp to 5MP
Analog HD Playback ResolutionSupport HDTVI Input: 5MP@12.5FPS, 1080p&720p@30/25FPS
Support AHD Input: 1080p&720p@30/25FPS
Support CVI Input:  1080p&720p@30/25FPS
Support CVBS Input
Motion Detection 2.0Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights
Max Playback Channel4CH  ONVIFSupport
Video CompressionH.265/Scene-Adaptive Bitrate Control coding
Video OutputHDMI/VGA up to 1080p/60 Hz
Supported Camera Types5 MP@12 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps,
IPC Recording ResolutionUp to 5MP
Analog HD Playback ResolutionSupport HDTVI Input: 5MP@12.5FPS, 1080p&720p@30/25FPS
Support AHD Input: 1080p&720p@30/25FPS
Support CVI Input:  1080p&720p@30/25FPS
Support CVBS Input
Max Playback Channel4CH
Video Input 8CH Analog HD/Analog + 2CH IP (each up to 5 Mbps)
Audio Input/Output 0/8-ch via coaxial cable
IP Camera Input 2-CH
IPC Playback Resolution Up to 5MP
Motion Detection 2.0 Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights
ONVIF Support
General
SSDBuild in SSD USBUSB 2.0 X2
SSD Capacity480G, 2 weeks continuous recording for 8 channle camera Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Working Temperature14 °F – 113 °F/-10 °C – 45 °C Dimensions (W X H X D)152 X 110 X 45 mm
Weight≤0.5Kg Operating PowerDC12V,≤ 6.2 W
SSDBuild in SSD
SSD Capacity480G, 2 weeks continuous recording for 8 channle camera
Working Temperature14 °F – 113 °F/-10 °C – 45 °C
Weight≤0.5Kg
USB USB 2.0 X2
Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Dimensions (W X H X D) 152 X 110 X 45 mm
Operating Power DC12V,≤ 6.2 W
